Variable Inductance Resonant Withstand Voltage Test Set , Hydraulic Type HV Test Set With Resonance , CVT Testing

I. Application :

CHX-(LYY) Hydraulic Automatic Elevating Series Resonance Test Devices mainly applies to AC voltage withstand and partial discharge detecting of high voltage electrical apparatus no more than 800KV. Especially suitable for field calibration test for different level of CVT and AC voltage withstand test for different level of HV.GIS and GIL.

Fanke successfully developed AC voltage withstand and PD detection device through combination of series resonance circuit theory and altering traditional test reactor structure from technical feature of materialogy,electromagnetic property,auto machinery and hydraulic transmission,which makes field testing much more suitable and efficient

II. Scope of Application

Used for power frequency PD-free high voltage power source for field calibration test of CVT angular difference and ratio error.
Used for AC voltage withstand test and PD test of HV.GIS, HV.GIL,HV.switch, mutual inductor, and bushing with voltage no more than 800KV

III. Main Components:

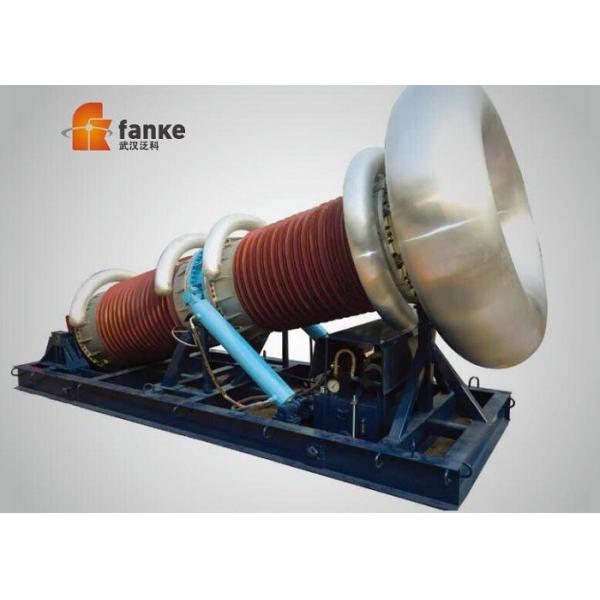

• Unibody-type excitation transformer and test reactor with Hydraulic Type platform
• Measurement and Control console
• Electric voltage regulator cabinet
• Standard voltage divider with coupling

Founded in 2003, FANKE is the domestic leader specializing in designing and manufacturing HV test, measurement and overhaul equipments. In 2003, Wuhan HIGHVOLT Co.,Ltd is established as our subsidiary. We provide a diversity of complete testing solutions and one-stop service for electric power companies, electric research institutions and electric equipments manufacture companies.
Located in Guannan Science and Technology Industrial park-- the Optical Valley of China, we cover an area of 12,000 square meters used for workshop and offices.With the registered capital of 16,000,000 yuan, our annual sales volume reaches 70,000,000 yuan. As a sub-measurement unit of Wuhan city, we develop us as a comprehensive high-tech enterprise integrating research, development, production, installation, commission, sales and service consultancy.

Good networking keeps us stay advantageous and innovative in the market. Relied on the wide cooperation with institutions of higher learning in Wuhan, we establish a HV research center supported by professional HV engineers and specialists from Wuhan High Voltage Research Institute of State Grid, Institute of Water Conservancy and Hydroelectric Power of Huazhong University of Science &Technology and Wuhan University.

Our management team is composed of professional administrators with rich experience in modern business and project management and technical personnel specializing in HV, power transmission, transformation and automation. Until now, we employ 75 stable workers, 65% of whom have bachelor degree and some of the rest are advanced engineers and professional experts with Doctor degree.

We hold numerous intellectual property rights, utility model and invention patents for products, such as hydraulic integrated high voltage withstand test system, series resonant test trail, ultra high voltage AC/DC voltage withstand test equipment, power frequency PD free voltage withstand test equipment and other electric power maintenance equipments as well as other tailor-made products.
Our products have been applied for onsite handover, preventive maintenance and quality inspection test. We have customers all around the country, including stated-owned institutions and large-scaled enterprises in sections of railway, oil industry and chemical engineering. Some products have been exported to overseas markets, including USA, Mid-east, Korea, India and Vietnam, ect.

With a vision to win-win result, We will continue to focus on customer needs and rely on technical innovation, striving to become the top-ranking provider for electric testing and measurement equipments and EPC engineering service.
